JAC T9

410N·m

55 Years of Chassis Engineering

Chassis & Powertrain

170hp turbo-diesel.
3,500kg towing.

Built on JAC's 55-year chassis heritage, the T9 pairs a 2.0-litre common-rail turbo-diesel (170hp, 410N·m) with an 8-speed automatic transmission. Electronic part-time 4WD and an electronic diff-lock give you control off-road, while a multi-link rear suspension and 3,500kg towing capacity keep it composed under load.

Powertrain details →

What sets the JAC T9 apart

Proven Chassis

55 years of JAC chassis design and manufacturing experience.

Serious Towing

3,500kg towing capacity, for work or for the trailer.

Off-Road Control

Electronic part-time 4WD with an electronic diff-lock and multi-link rear suspension.

Diesel Performance

170hp and 410N·m from a 2.0-litre turbo-diesel, paired with an 8-speed automatic.

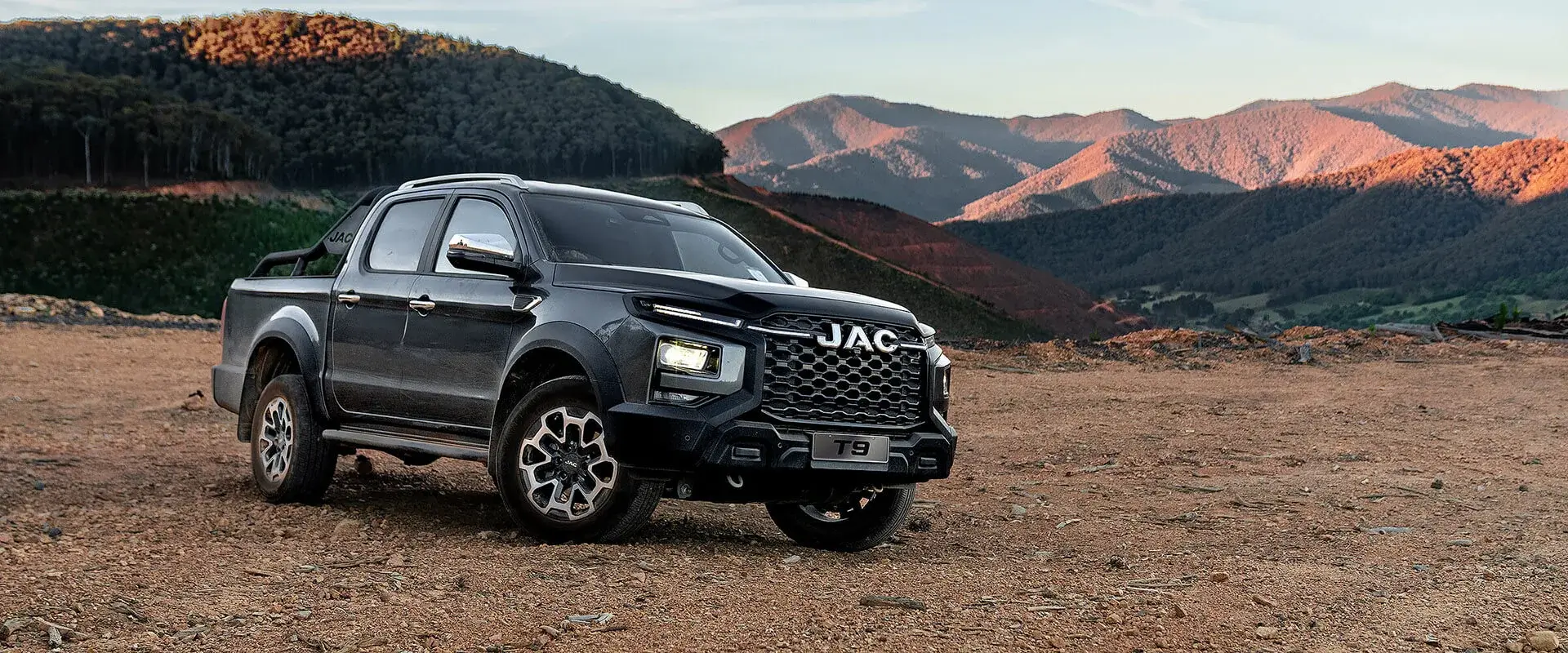

Safety

Active and passive safety systems working together — protecting occupants and anticipating hazards before they become accidents.

Safety Configuration

ABS, EBD, BOS, HHC (Hill Hold Control)
HBA (Hydraulic Brake Assist), TCS, VDC, ESC, TPMS
Driver and front passenger airbags, side airbags, curtain airbags
Pre-tensioner seatbelts (driver and front passenger)
3-point seatbelts for rear outer and centre seats
Power door lock, auto door lock, remote central locking
Power lockable rear tailgate
ISOFIX child restraint system, child safety lock

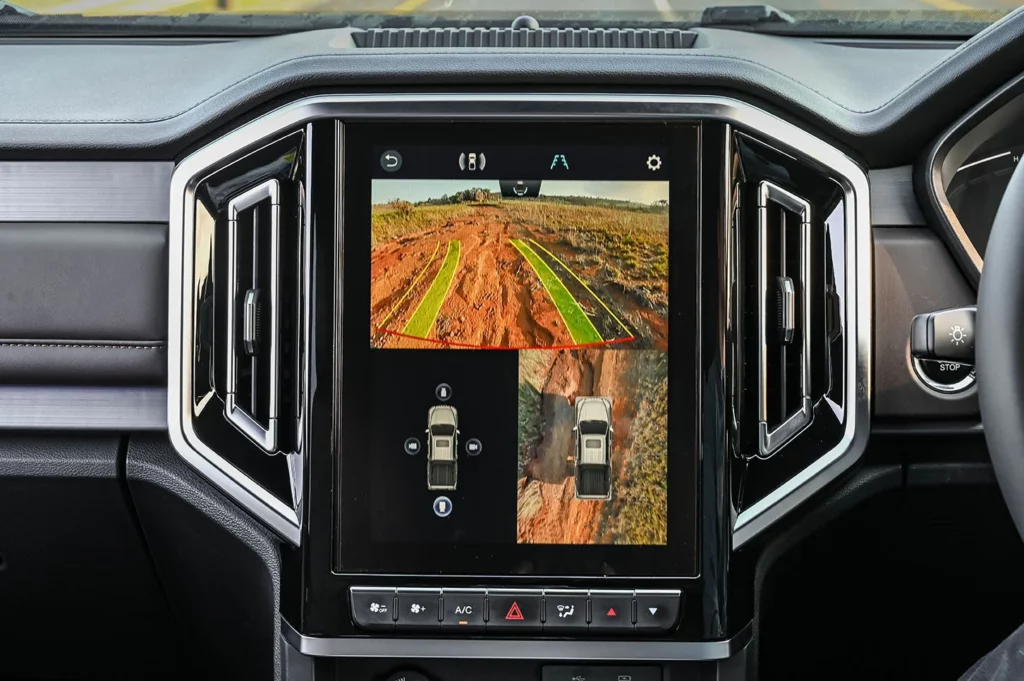

360° view camera
5-Star ANCAP Safety Rating

Technical specifications

Full specification sheet

↓ Download Brochure

01 Dimensions & Capacity

Overall (L × W × H)5,330 × 1,965 × 1,920 mm

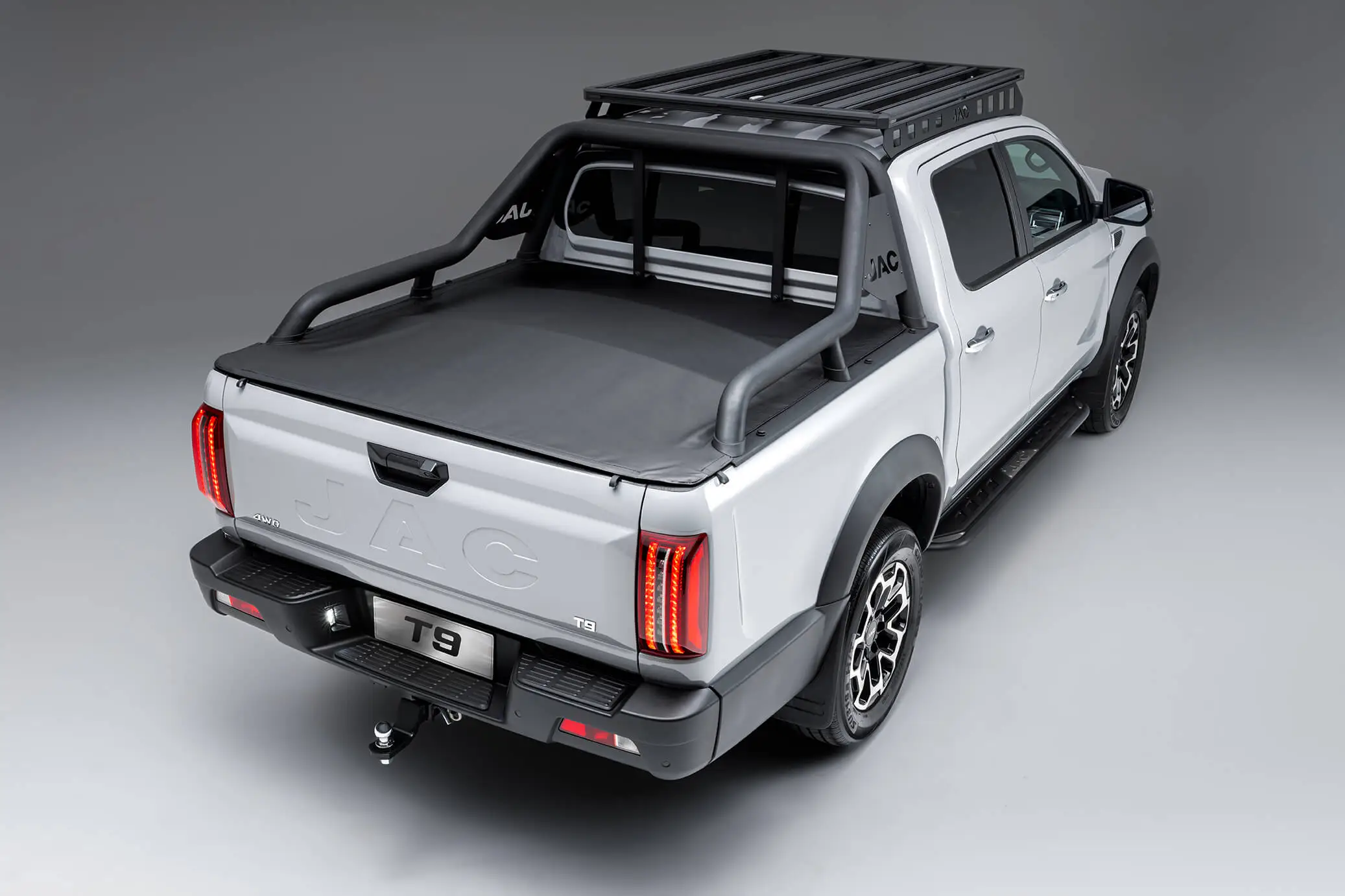

Cargo box (L × W × H)1,520 × 1,590 × 470 mm

Wheelbase3,110 mm

Track (front/rear)1,610 / 1,610 mm

GVM3,100 kg

Kerb weight2,155 kg

Payload945 kg

Seating2 + 3

Ground clearance210 mm

Turning radius6.2 m

02 Powertrain

Engine2.0L common-rail turbo-diesel (EGR + DOC + DPF)

Displacement1,999 cc

Maximum power125 kW (170 hp) @ 3,600 rpm

Maximum torque410 N·m @ 1,500–2,500 rpm

EmissionsEuro V

Transmission8-speed automatic (8AT)

Drive4×4

Max speed150 km/h

Fuel tank76 L

03 Chassis

Front suspensionDouble-wishbone independent with coil spring

Rear suspensionNon-independent leaf-spring rigid axle

BrakesDisc brakes front and rear

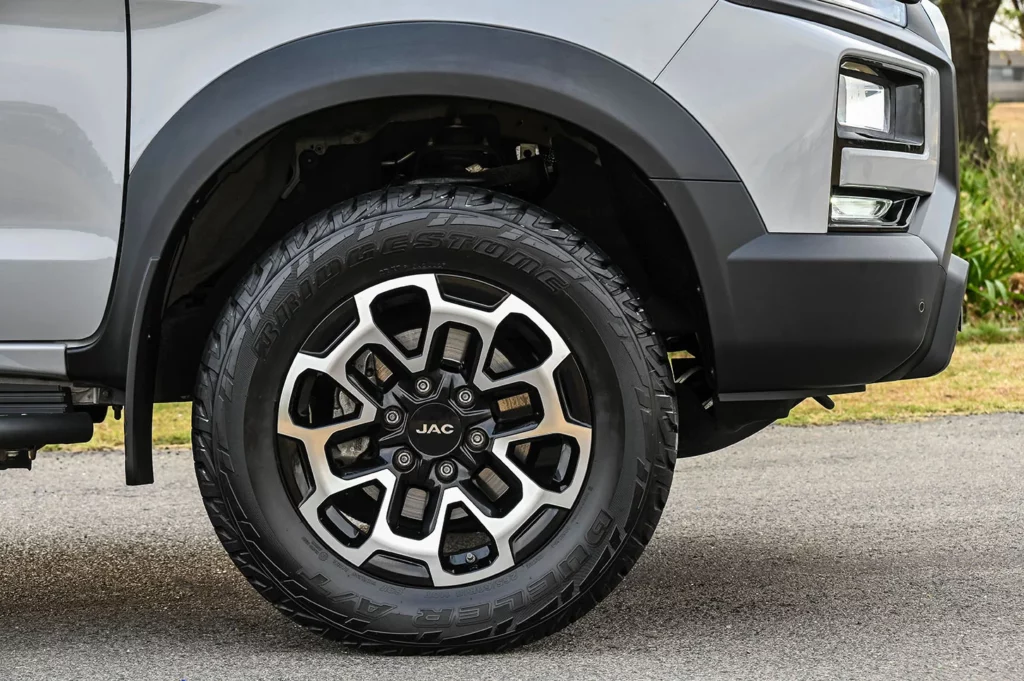

Tyres265/60 R18 · aluminium alloy rims

Spare tyre265/60 R18 with steel rim (matching)

04 Interior Equipment

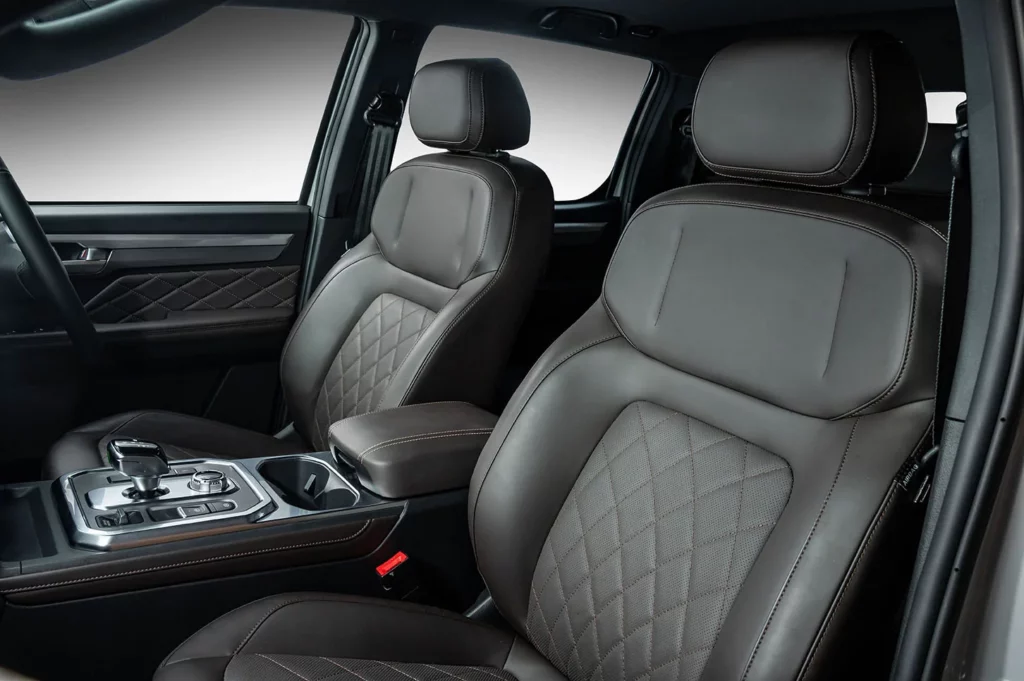

UpholsteryGenuine high-grade leather

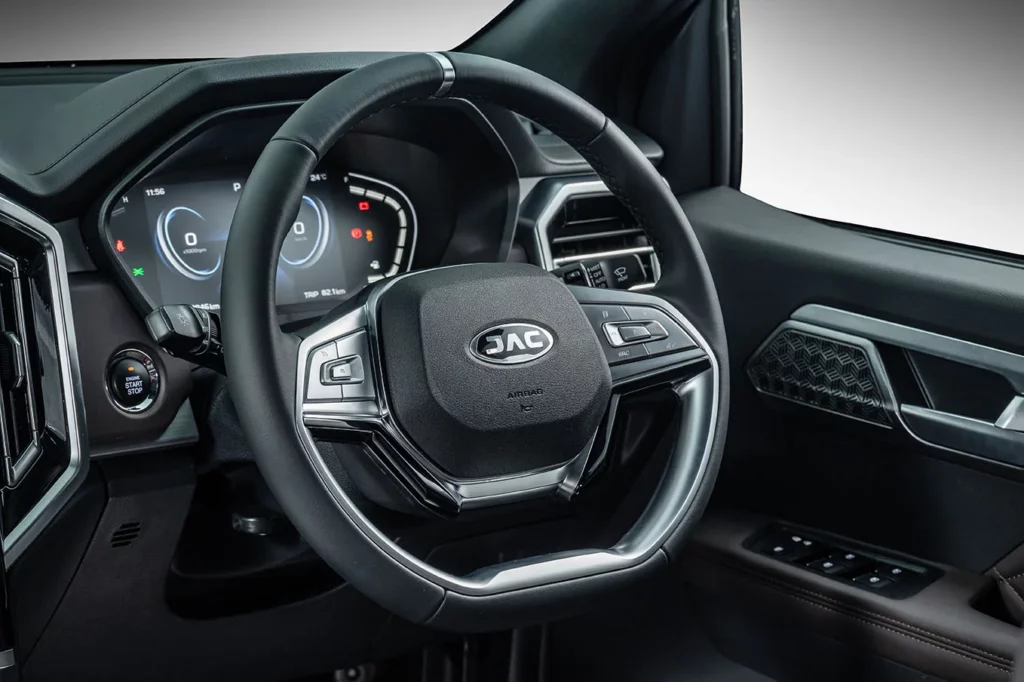

Steering wheelLeather-bound · multifunction controls · up/down adjust

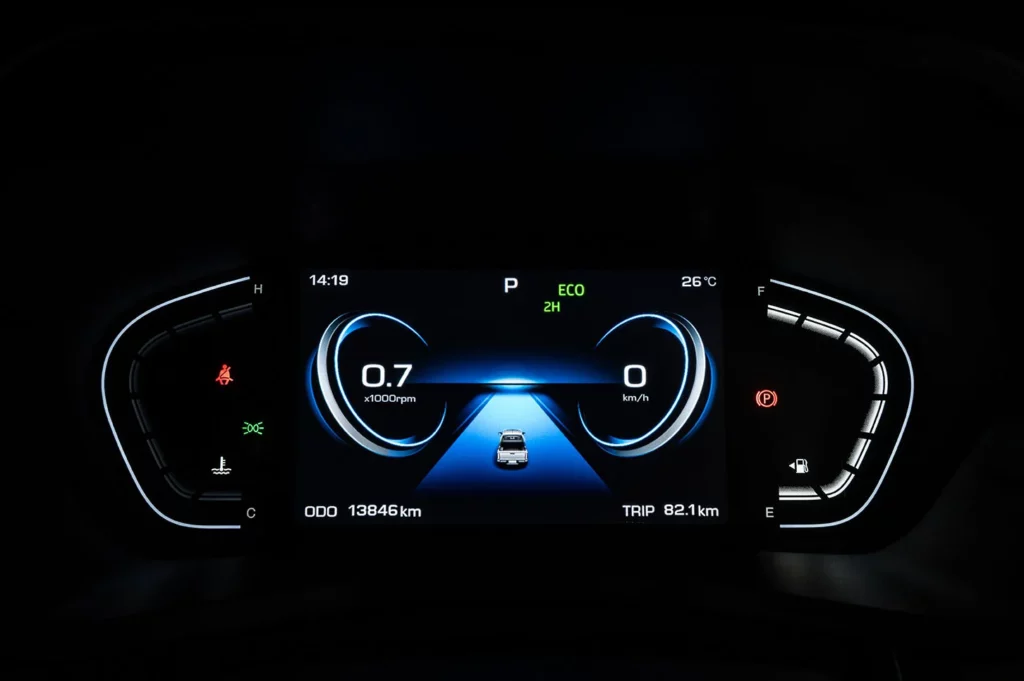

Instrument cluster7″ colour digital display

Climate controlA/C with climate control

Seat adjustmentDriver & front passenger power seat adjustment

Front armrestWith cooler box

StartPush start

05 Safety

Braking systemsABS · EBD · BOS · HHC · HBA · TCS · VDC · ESC

Tyre monitoringTPMS

AirbagsDriver & front passenger · side airbags · curtain airbags

SeatbeltsPre-tensioner (driver & front passenger) · 3-point rear outer & centre

LockingPower door lock · auto door lock · remote central locking · power lockable rear tailgate

Child safetyISOFIX · child safety lock

Camera360° view camera

06 Exterior Equipment

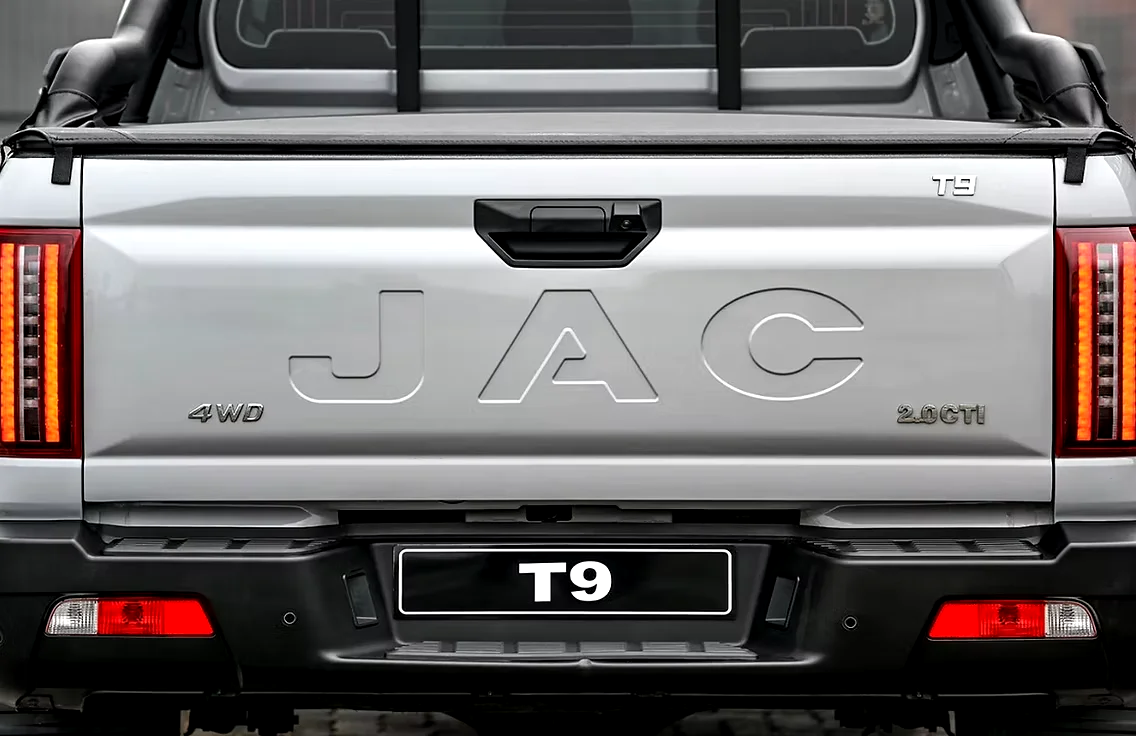

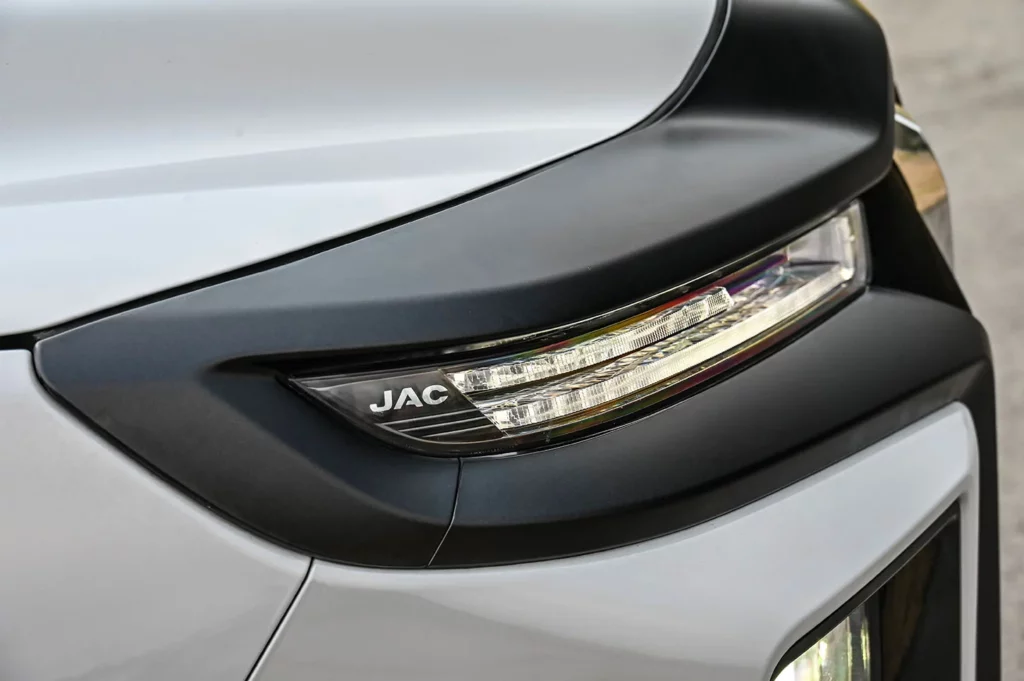

LightsLED headlamps · DRLs · rear combination lamps · high-mounted stop light · front & rear fog lamps

Headlamp controlLevelling & automatic lightening

BumperRear step bumper

Side mirrorsElectrically adjustable · auto-folding

SunroofElectric sunroof

07 Multimedia

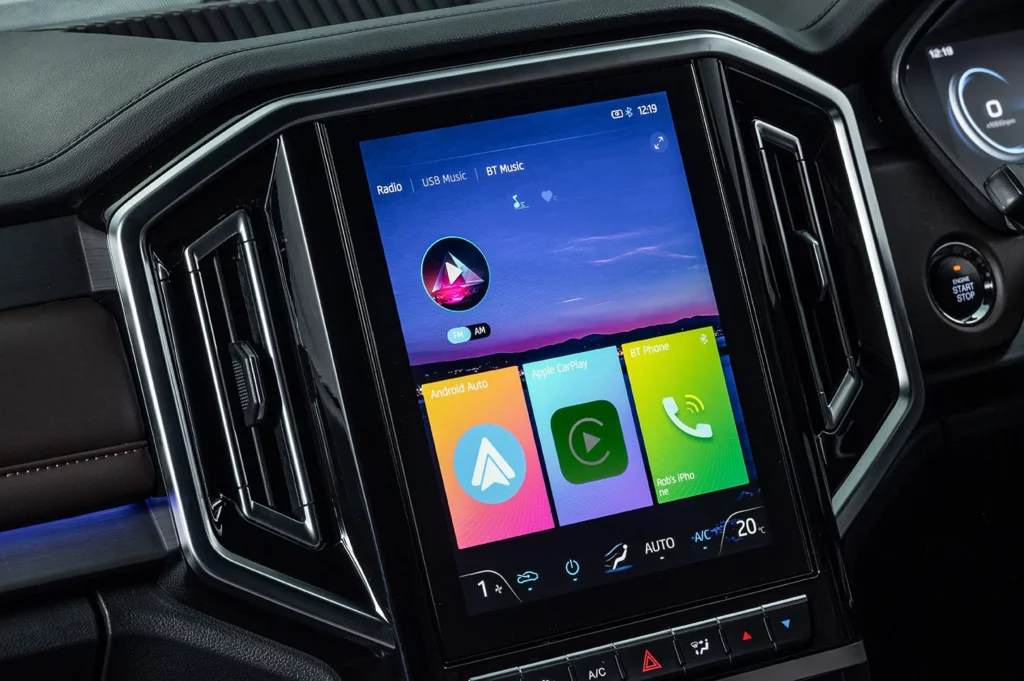

ConnectivityBluetooth · Apple CarPlay · Android Auto

USB portsFront & rear USB ports

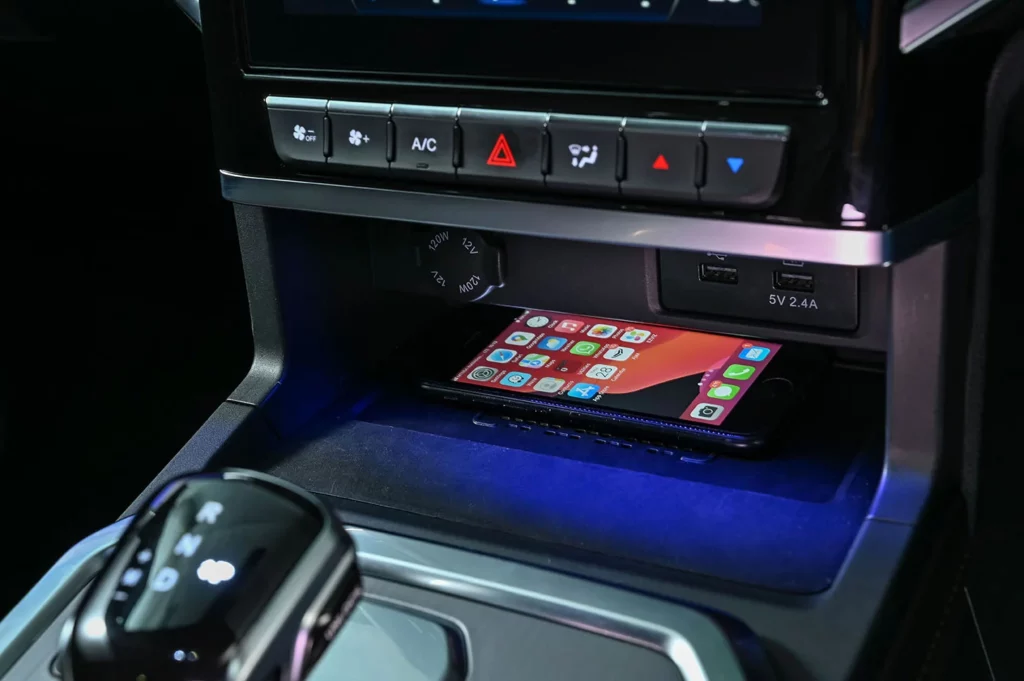

Power outputs12V power socket · 220V accessory socket

Sound system6 speakers

Wireless chargingYes
